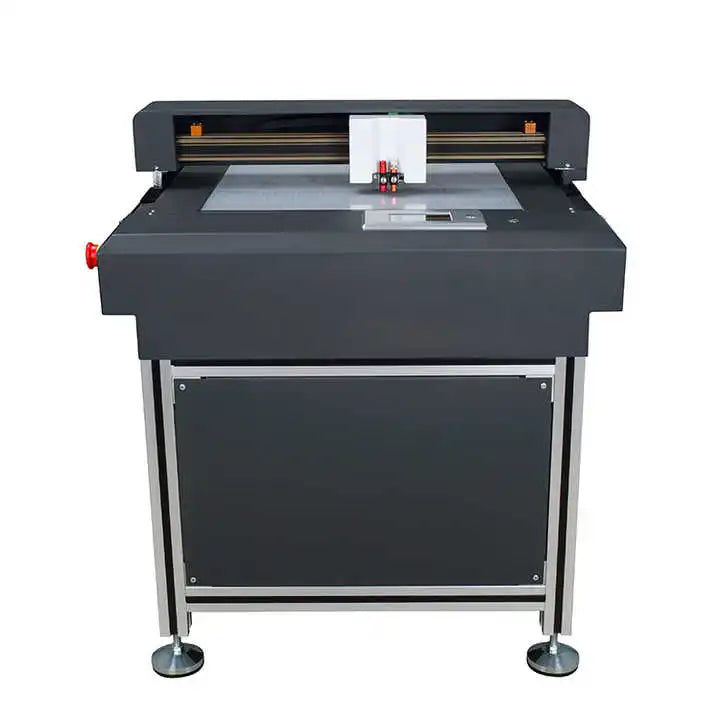

Skycut F4560 Flatbed Cutting Plotter – Heavy‑Duty Flatbed Cutter
Skycut F4560 Flatbed Cutting Plotter – Heavy‑Duty Flatbed Cutter
Regular price
Rs. 296,180.00
Regular price
Sale price
Rs. 296,180.00
Quantity
Couldn't load pickup availability
Product Description
Main Features:
1, Double heads which can make cutting & creasing by one step
2, Built-in WIFI
3, 4.3" HD LCD Touch screen
4, Work Mode :Vacuum adsorbing
5, Built-in Camera,Capable for any mark (any color mark,Multi-mark) & support colorful,reflective,transparent material
6, CCD Camera Automatically contour cut ,which can Auto-snapshot and deal with mark point,fast and accurate
7, High-speed 32bit M4 arithmetic microprocessor.128M merroy. Stable and high precision,cut smooth and quiet.
2, Built-in WIFI
3, 4.3" HD LCD Touch screen
4, Work Mode :Vacuum adsorbing
5, Built-in Camera,Capable for any mark (any color mark,Multi-mark) & support colorful,reflective,transparent material
6, CCD Camera Automatically contour cut ,which can Auto-snapshot and deal with mark point,fast and accurate
7, High-speed 32bit M4 arithmetic microprocessor.128M merroy. Stable and high precision,cut smooth and quiet.
8, Multi-Connection available :WIFI/ U-disk/USB cable
9, Large cutting force up to 2000g,Max cut 450gsm (2-3mm)
10, Emergency button for double protection to enhance the safty and convenience
10, Emergency button for double protection to enhance the safty and convenience
Technical Specifications
|
Model
|
F4560
|
F6090
|
F9012
|
|

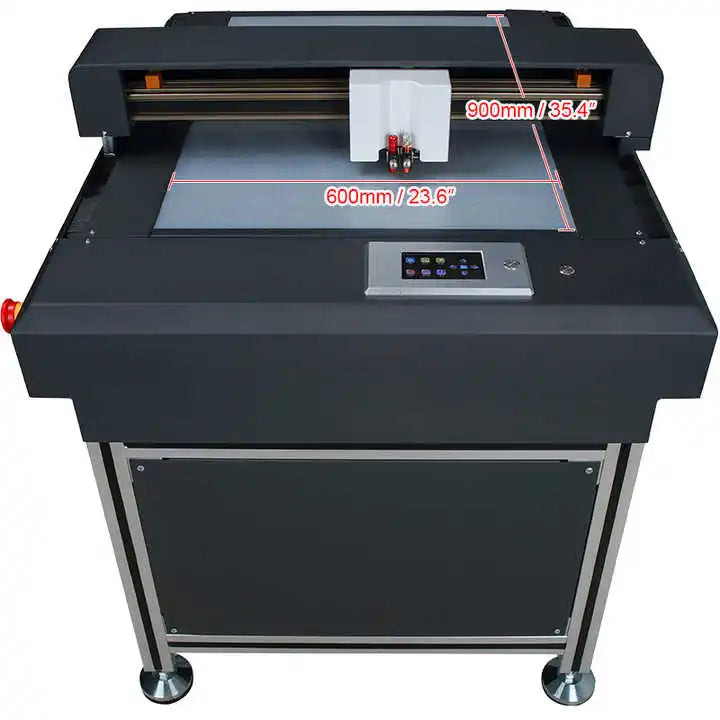

Max Cutting Length
|
600mm
|
600mm
|
900mm
|
|
Max cutting width
|
450mm
|
900mm
|
1200mm
|
|
Auto contour cut
|
camera
|
camera
|
camera
|
|

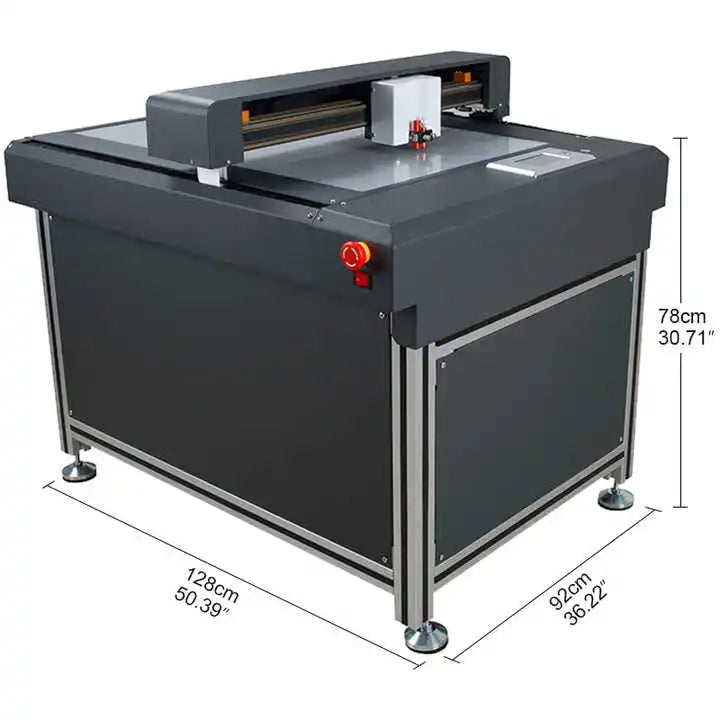

Packing size
|
1050*900*1020mm
|
1370*1020*1020mm
|
1700*1330*1020mm
|
|
Packing gross weight
|
161kg
|
180kg
|
280kg
|
|
Cutting head
|
cutting+creasing
|
||
|
Operation
|
4.3" TFT LCD Large touch screen
|
||
|
Connector interface
|
USB cable,USB flash drive,WIFI
|
||
|
Max moving speed
|
800mm/s
|
||
|
Max cutting speed
|
600mm/s
|
||
|
Force
|
Large cutting force up to 2000g, max cut 450gsm (2-3mm)
|
||
|
Cutting precision
|
< 0.01mm
|
||
|
Repeat precision
|
0.082mm
|
||
|
Work Mode
|
Vacuum adsorbing
|
||
|
Built-in Camera
|
Capable for any mark (any color mark,Multi-mark) & support colorful
|
||
|
Driver
|
Digital DC stepper motor,microstep driving
|
||
|
high speed
|
High-speed 32bit M4 arithmetic microprocessor.128M merroy.
|
||
|
Power supply
|
AC100~240V/50Hz~60Hz
|
||
|
Software
|
SignMaster / Flexi /Easy Cut Studio / Signcut / CorelDRAW driver Optional / Adobe illustrator driver
|
||

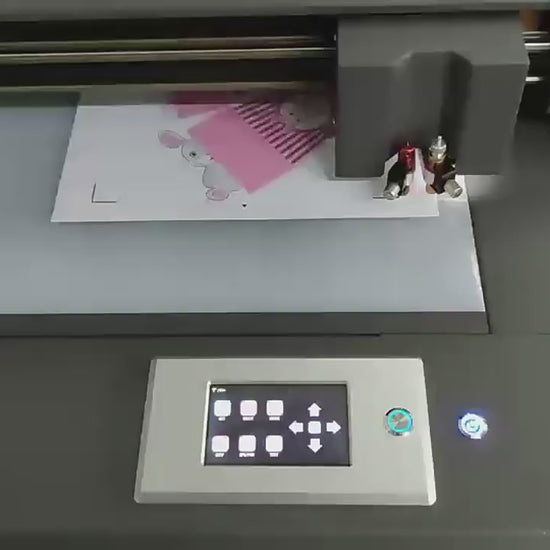

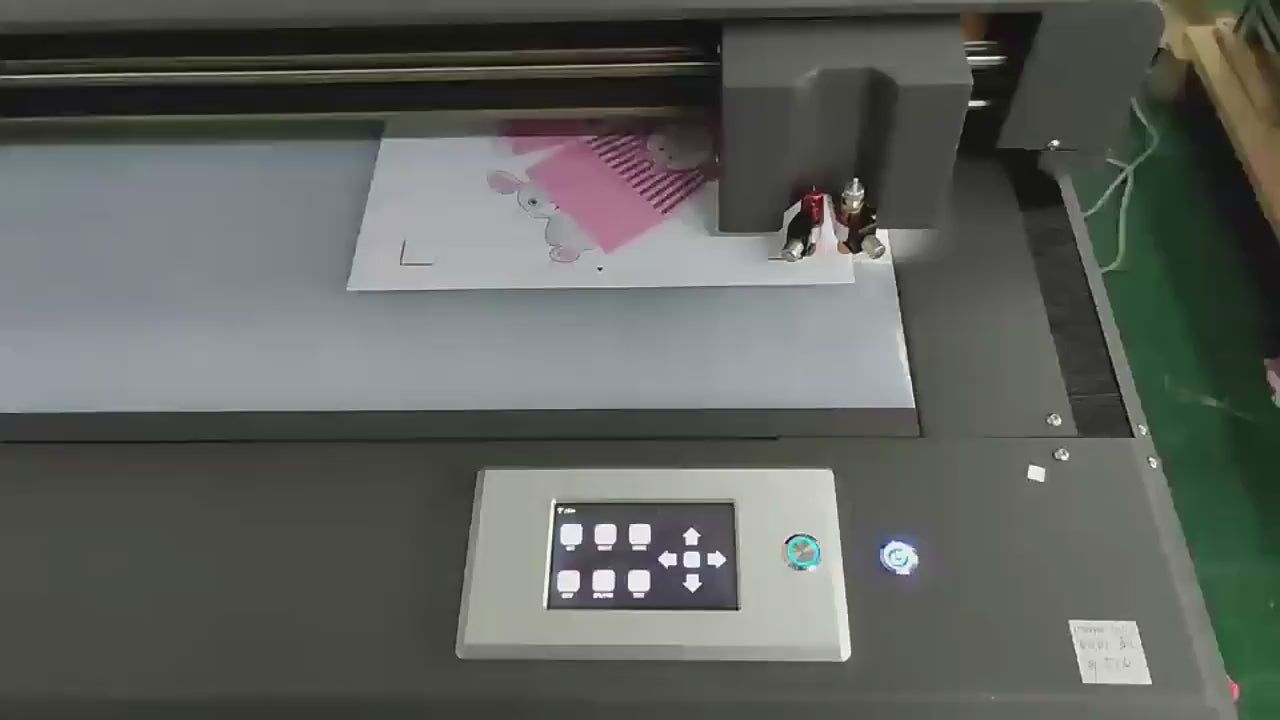

Detailed Images
Apllication
